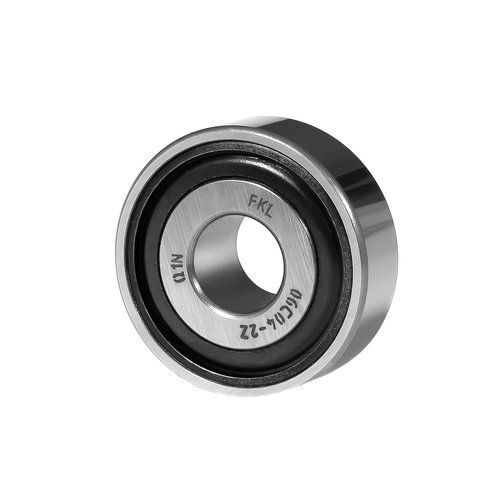

Čtyřbodové ložisko pro secí stroje
ložisko 06C04-TS možno použít jako náhradu za:
-
PEER 204JY3
-
SMA 851-SMA204RY2
-
FITS TYPE 550-302
-
GREAT PLAINS 820-003C, 822-011C
-
JOHN DEERE AA21480
-
KINZE GA2014
-
USA NUMBER 204PY3
-
IHC 145161C91
-
IHC 1258017C91
-
IHC 492757R91
-
IHC 493532R91
-
HORSCH 00240199, 00310104
-
FAFNIR 204RY2
-
CASE 1258017C91, 1268017C91, 145161C91, 492757R91, 493532R91
-
KRAUSE 40-138
-
NSK F556129, QJ6204S03LSLB-1
-
TIMKEN 204PY3
Technical Specification
|
d |
Bore diameter |
16 |
mm |
|
D |
Outside diameter |
45.2 |
mm |
|
B |
Width inner ring |
18.67 |
mm |
|
C |
Width outer ring |
15.4 |
mm |
|
α |
Contact angle |
25 |
° |
|
kg |
Mass |
0.23 |
kg |
|
Cdyn |
Dynamic load rating |
19.6 |
kN |
|
Co |
Static load rating |
12.5 |
kN |
|
Pu |
Fatigue load limit |
0.525 |
kN |
